In this notebook, we will use OpenCosmo in coordination with yt and pyxsim to compute X-ray luminosity in different bands for gas around AGN particles, considering thermal emission. The overall strategy for this calculation is:
Use the OpenCosmo Toolkit to associate particle data with halos and identify the positions of AGN particles
Use yt/pyxsim to draw a sphere around each AGN particle and compute the total x-ray luminosity for gas particles in three separate bands
Repeat step 2 for a number of halos, and compute x-ray hardness ratio for each sphere
We will also investigate how x-ray luminosities/hardness ratios are related to whether a given AGN particle is emitting thermal vs. mechanical (kinetic) feedback.
import numpy as np
import opencosmo as oc
from opencosmo.analysis import create_yt_dataset
import yt
from yt.units import Mpc, km, s, yr, Msun, keV
import matplotlib.pyplot as plt
from matplotlib.colors import LogNorm
from pathlib import Path
data_root = Path("/global/cfs/cdirs/hacc/www/OpenCosmo/xray-emission-near-agn")
ds = oc.open(data_root / "halos_and_particles.hdf5")
We will consider three energy ranges, corresponding to soft emission (0.5-1.2 keV), hard emission (2.0-7.0 keV), and bolometric (0.5-7.0 keV).
# define energy ranges
e0 = [0.5,1.2] # soft x-ray, in keV
e1 = [2.0,7.0] # hard x-ray, in keV
ebol = [0.5, 7.0] # total range we care about, in keV
R = 50 # sampling sphere radius in units of kpc
# pyxsim will store x-ray luminosity in the fields with these names
L0 = f"xray_luminosity_{e0[0]:.1f}_{e0[1]:.1f}_keV"
L1 = f"xray_luminosity_{e1[0]:.1f}_{e1[1]:.1f}_keV"
Lbol = f"xray_luminosity_{ebol[0]:.1f}_{ebol[1]:.1f}_keV"Set up derived fields for yt datasets. The decorator @yt.derived_field tells yt to compute and store the field defined by the subsequent function any time a yt dataset is created.
The following quantities will be computed for each AGN particle:
Eddington accretion rate
The ratio between the Bondi-Hoyle accretion rate and the Eddington accretion rate:
Threshold value of for determining if the AGN particle is set to emit thermal or mechanical (kinetic) feedback.
# Eddington accretion rate
@yt.derived_field(
name=("agn", "eddr"),
sampling_type="particle",
units="Msun/yr",
)
def _eddington(field, data):
agn_rad_eff = 0.2
edd_const = 2.21857e-9 * 1/yr # 1/yr
hubble = 0.6766
edd_rate = edd_const / agn_rad_eff * data["agn","mbh"].to("Msun") * hubble
return edd_rate
# Bondi-Hoyle accretion rate, divided by the Eddington accretion rate.
# This quantity, Chi, is used internally by HACC to determine if an AGN is emitting thermal or kinetic feedback.
@yt.derived_field(
name=("agn", "chi"),
sampling_type="particle",
units="dimensionless",
)
def _chi(field, data):
return data["agn","bhr"]/data["agn","eddr"]
# The Chi threshold for determining if an AGN is in thermal mode or kinetic mode.
@yt.derived_field(
name=("agn", "chi_threshold"),
sampling_type="particle",
units="dimensionless",
)
def _chi_threshold(field, data):
chi_0 = 0.002
beta = 2.0
chi_max = 0.1
chi_t = chi_0 * data["agn", "mbh"].to("Msun")/(1e8*Msun)
chi_t[chi_t > chi_max] = chi_max
return chi_tNow, we will loop through all halos and convert the particle data to a yt dataset. We will use yt to select a 50 kpc sphere around each AGN particle and compute the total thermal x-ray luminosity within the sphere.
L_soft, L_hard, L_bol = [], [], []
M = []
chi, chi_ratio = [], []
# loop through halos
for j, halo in enumerate(ds.halos()):
# Convert particle data for halo into a yt dataset.
# With `compute_xray_fields=True`, the pyxsim tool is used to compute
# x-ray luminosities from gas assuming thermal emission from gas in collisional ionization equilibrium.
# See this link for a description of pyxsim's thermal models:
# https://hea-www.cfa.harvard.edu/~jzuhone/pyxsim/source_models/thermal_sources.html
# Here, we will compute luminosities for the bolometric energy range.
ds_yt, source_model = create_yt_dataset(halo,
compute_xray_fields = True, return_source_model = True,
source_model_kwargs={"emin": ebol[0], "emax": ebol[1]}
)
# compute separate x-ray luminosity fields for soft and hard emission.
# The `source_model` that is returned by `create_yt_dataset` is an instance of pyxsim's `CIESourceModel`
source_model.make_source_fields(ds_yt, e0[0], e0[1])
source_model.make_source_fields(ds_yt, e1[0], e1[1])
# Get positions, masses, etc. from all agn particles in the halo
ad = ds_yt.all_data()
x_agn, y_agn, z_agn = ad["agn","particle_position_x"], ad["agn","particle_position_y"], ad["agn","particle_position_z"]
mbh_agn = ad["agn","mbh"]
chi_agn = ad["agn","chi"]
chi_agn_thresh = ad["agn","chi_threshold"]
chi_agn_ratio = chi_agn/chi_agn_thresh
# Loop through AGN particles
for i in range(len(x_agn)):
x, y, z = x_agn[i], y_agn[i], z_agn[i]
mbh = mbh_agn[i]
# construct a small sphere around each AGN
sp = ds_yt.sphere([x, y, z], (R, "kpc"))
# get total x-ray luminosity in the sphere for each band
L0_gas = sp.quantities.total_quantity(L0).to("erg/s")
L1_gas = sp.quantities.total_quantity(L1).to("erg/s")
Lbol_gas = sp.quantities.total_quantity(Lbol).to("erg/s")
# update lists
L_soft.append(L0_gas)
L_hard.append(L1_gas)
L_bol.append(Lbol_gas)
M.append(mbh)
chi.append(chi_agn[i].d)
chi_ratio.append(chi_agn_ratio[i].d)
# compute hardness ratios
L_ratio = np.array(L_hard)/np.array(L_soft)Now that we have our array of luminosities, we can compute distributions of , , and as functions of , , and .
bins_Lx = np.geomspace(1e35, 1e46, 128)
bins_Lx_ratio = np.geomspace(1e-4, 1e1, 128)
bins_M = np.geomspace(1e6, 1e10, 128)
bins_chi = np.geomspace(1e-12, 1e0, 128)
bins_chi_ratio = np.geomspace(1e-8, 1e4, 128)
norm=LogNorm(vmin=1)
# compute 2D histograms
h1, x1, y1 = np.histogram2d(M, L_soft, bins = [bins_M, bins_Lx])
h2, x2, y2 = np.histogram2d(M, L_hard, bins = [bins_M, bins_Lx])
h3, x3, y3 = np.histogram2d(M, L_ratio, bins = [bins_M, bins_Lx_ratio])
h4, x4, y4 = np.histogram2d(chi, L_soft, bins = [bins_chi, bins_Lx])
h5, x5, y5 = np.histogram2d(chi, L_hard, bins = [bins_chi, bins_Lx])
h6, x6, y6 = np.histogram2d(chi, L_ratio, bins = [bins_chi, bins_Lx_ratio])
h7, x7, y7 = np.histogram2d(chi_ratio, L_soft, bins = [bins_chi_ratio, bins_Lx])
h8, x8, y8 = np.histogram2d(chi_ratio, L_hard, bins = [bins_chi_ratio, bins_Lx])
h9, x9, y9 = np.histogram2d(chi_ratio, L_ratio, bins = [bins_chi_ratio, bins_Lx_ratio])
# plot data
fig, [[ax1, ax2, ax3], [ax4, ax5, ax6], [ax7, ax8, ax9]] = plt.subplots(3,3)
fig.set_size_inches((10,10))
X, Y = np.meshgrid(x1, y1)
ax1.pcolormesh(X, Y, h1.T, norm=norm)
X, Y = np.meshgrid(x2, y2)
ax2.pcolormesh(X, Y, h2.T, norm=norm)
X, Y = np.meshgrid(x3, y3)
ax3.pcolormesh(X, Y, h3.T, norm=norm)
X, Y = np.meshgrid(x4, y4)
ax4.pcolormesh(X, Y, h4.T, norm=norm)
X, Y = np.meshgrid(x5, y5)
ax5.pcolormesh(X, Y, h5.T, norm=norm)
X, Y = np.meshgrid(x6, y6)
ax6.pcolormesh(X, Y, h6.T, norm=norm)
X, Y = np.meshgrid(x7, y7)
ax7.pcolormesh(X, Y, h7.T, norm=norm)
ax7.axvline(1.0, c='k', ls='--')
X, Y = np.meshgrid(x8, y8)
ax8.pcolormesh(X, Y, h8.T, norm=norm)
ax8.axvline(1.0, c='k', ls='--')
X, Y = np.meshgrid(x9, y9)
ax9.pcolormesh(X, Y, h9.T, norm=norm)
ax9.axvline(1.0, c='k', ls='--')
ax1.set(xlabel = r"$M_\mathrm{BH}\ [M_\odot]$",
ylabel = r"$L_{x,\mathrm{soft}}\ [\mathrm{s^{-1}\,erg}]$",
ylim = [1e35, 1e46],
title = f"{e0[0]:.1f}-{e0[1]:.1f} keV",
xscale="log",
yscale="log",
box_aspect=1)
ax2.set(xlabel = r"$M_\mathrm{BH}\ [M_\odot]$",
ylabel = r"$L_{x,\mathrm{hard}}\ [\mathrm{s^{-1}\,erg}]$",
ylim = [1e35, 1e46],
title = f"{e1[0]:.1f}-{e1[1]:.1f} keV",
xscale="log",
yscale="log",
box_aspect=1)
ax3.set(xlabel = r"$M_\mathrm{BH}\ [M_\odot]$",
ylabel = r"$L_{x,\mathrm{h}}/L_{x,\mathrm{s}}$",
ylim = [1e-4, 1e1],
xscale="log",
yscale="log",
box_aspect=1)
ax4.set(xlabel = r"$\chi = \frac{\dot{M}_\mathrm{BH}}{\dot{M_\mathrm{Edd}}}$",
ylabel = r"$L_{x,\mathrm{soft}}\ [\mathrm{s^{-1}\,erg}]$",
ylim = [1e35, 1e46],
title = f"{e0[0]:.1f}-{e0[1]:.1f} keV",
xscale="log",
yscale="log",
box_aspect=1)
ax5.set(xlabel = r"$\chi = \frac{\dot{M}_\mathrm{BH}}{\dot{M_\mathrm{Edd}}}$",
ylabel = r"$L_{x,\mathrm{hard}}\ [\mathrm{s^{-1}\,erg}]$",
ylim = [1e35, 1e46],
title = f"{e1[0]:.1f}-{e1[1]:.1f} keV",
xscale="log",
yscale="log",
box_aspect=1)
ax6.set(xlabel = r"$\chi = \frac{\dot{M}_\mathrm{BH}}{\dot{M_\mathrm{Edd}}}$",
ylabel = r"$L_{x,\mathrm{h}}/L_{x,\mathrm{s}}$",
ylim = [1e-4, 1e1],
xscale="log",
yscale="log",
box_aspect=1)
ax7.set(xlabel = r"$\frac{\chi}{\chi_\mathrm{thresh}}$",
ylabel = r"$L_{x,\mathrm{soft}}\ [\mathrm{s^{-1}\,erg}]$",
ylim = [1e35, 1e46],
title = f"{e0[0]:.1f}-{e0[1]:.1f} keV",
xscale="log",
yscale="log",
box_aspect=1)
ax8.set(xlabel = r"$\frac{\chi}{\chi_\mathrm{thresh}}$",
ylabel = r"$L_{x,\mathrm{hard}}\ [\mathrm{s^{-1}\,erg}]$",
ylim = [1e35, 1e46],
title = f"{e1[0]:.1f}-{e1[1]:.1f} keV",
xscale="log",
yscale="log",
box_aspect=1)
ax9.set(xlabel = r"$\frac{\chi}{\chi_\mathrm{thresh}}$",
ylabel = r"$L_{x,\mathrm{h}}/L_{x,\mathrm{s}}$",
ylim = [1e-4, 1e1],
xscale="log",
yscale="log",
box_aspect=1)
fig.tight_layout()
plt.show()

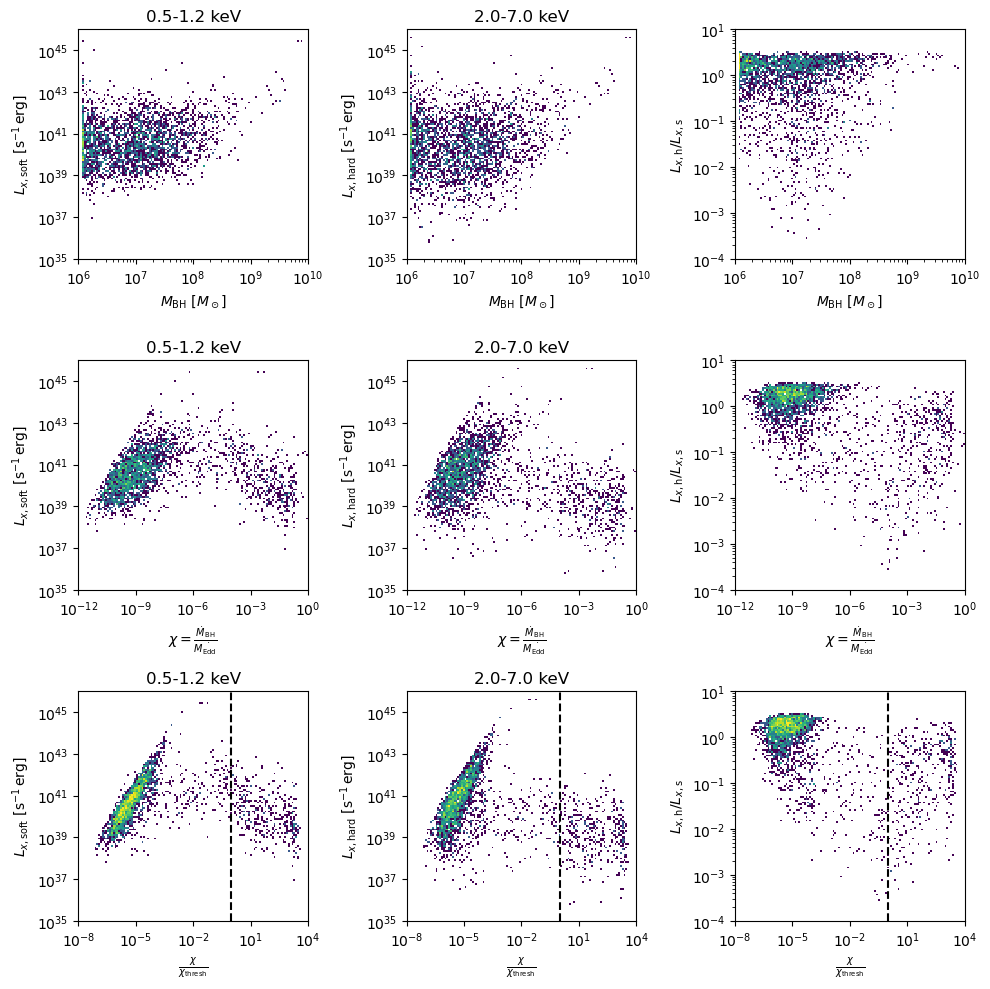

The above figure shows (left column), (middle column), and (right column) plotted versus three variables: black hole mass (top row), (middle row), and (bottom row). The vertical dashed line in the bottom row shows , which separates AGN that are currently in thermal feedback mode () versus kinetic feedback mode (). For more details, see Section 2.7 of the CRK-HACC subgrid methods paper.

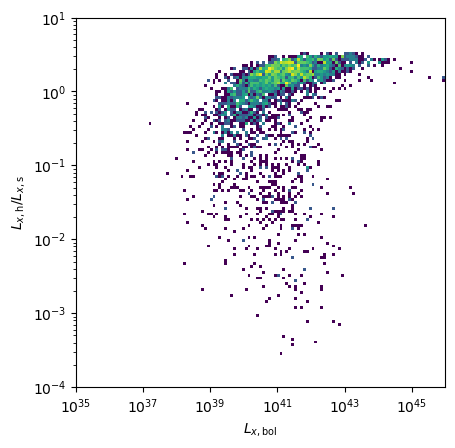

Now, let’s plot hardness ratio as a function of bolometric x-ray luminosity:
h10, x10, y10 = np.histogram2d(L_bol, L_ratio, bins = [bins_Lx, bins_Lx_ratio])
fig, ax10 = plt.subplots(1,1)
X, Y = np.meshgrid(x10, y10)
ax10.pcolormesh(X, Y, h10.T, norm=norm)
ax10.axvline(1.0, c='k', ls='--')
ax10.set(xlabel = r"$L_{x,\mathrm{bol}}$",
ylabel = r"$L_{x,\mathrm{h}}/L_{x,\mathrm{s}}$",
xlim = [1e35, 1e46],
ylim = [1e-4, 1e1],
xscale="log",
yscale="log",
box_aspect=1)
plt.show()
